Premium sliding
systems
High efficient systems
- Engineered for large-format sliding doors, enabling expansive glass surfaces that maximize natural light and offer unobstructed views.
- Supports ultra-wide and heavy glass panels with smooth, effortless operation—ideal for high-end residential and commercial applications
- Combines minimalist aesthetics with top-tier performance, delivering seamless integration, quiet movement, and lasting durability for sophisticated architectural designs.
“The ideal solution for large-format openings and high performance.”
Premium sliding
systems
High efficient systems
“The ideal solution for large-format openings and high performance.”
- Engineered for large-format sliding doors, enabling expansive glass surfaces that maximize natural light and offer unobstructed views.
- Supports ultra-wide and heavy glass panels with smooth, effortless operation—ideal for high-end residential and commercial applications
- Combines minimalist aesthetics with top-tier performance, delivering seamless integration, quiet movement, and lasting durability for sophisticated architectural designs.
Technical Sheet
- Possibility of manufacturing sliding or lift-and-slide glass doors.
- Different locking mechanism options, including multi-point rods and bidirectional systems.
- Sliding version: Maximum panel width: 3500 mm / Maximum panel height: 4200 mm.

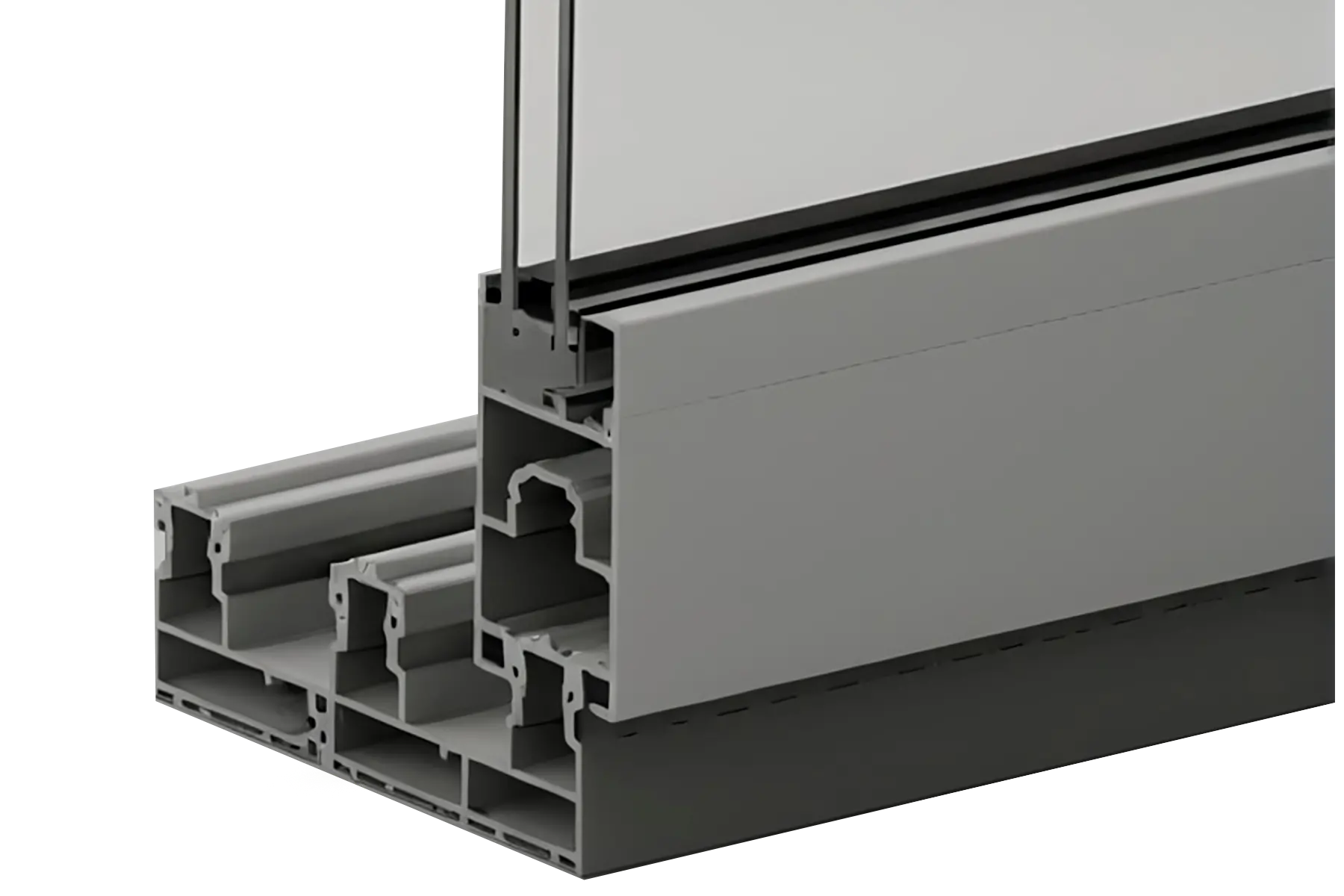

- A key feature of the Premium Sliding System is the ability to add ad ditional rails as many times as needed, depending on the opening design and the number of panels required. This allows for a wide range of design possibilities and configurations tailored to the customer’s needs.
System Specifications
- Maximum sliding door panel kg or 300 kg depending on the roller system.
- Glass thickness capacity from 6 mm to 23 mm, made possible by the variety of glazing beads

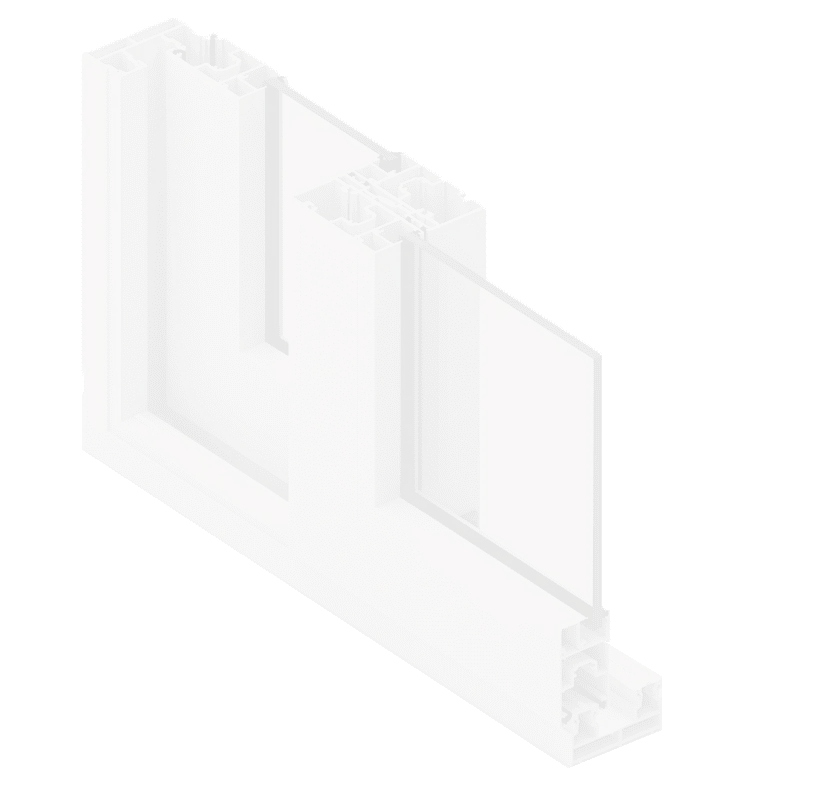

Main frame cuts at 45°, perimeter design with an additional frame to create the multi-track rail
- EPDM gaskets (ethylene propylene diene rubber) that provide the system’s airtightness and sealing performance.
- Accessories: Manufactured by European companies such as M.Rodriguez (PT), Stac (ESP), Master (ITA), Polismar (PT), among others.
